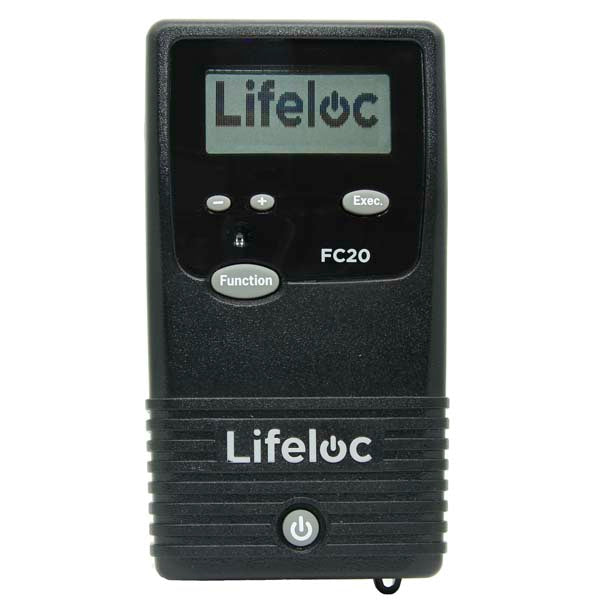

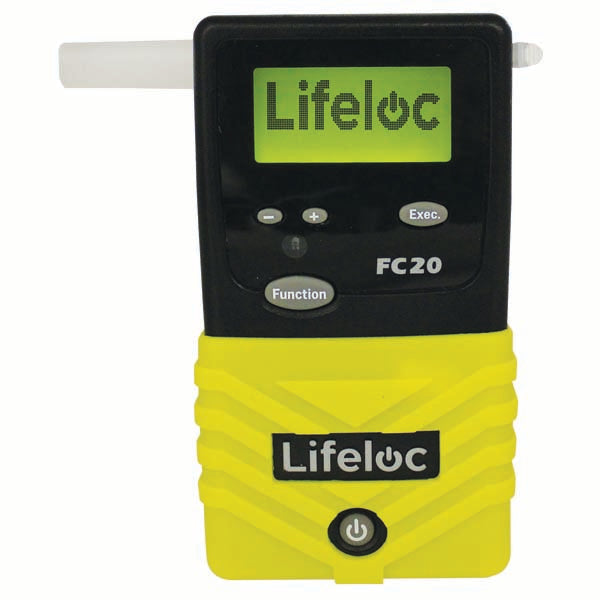

FC20 (Device Only)

The FC-20 incorporates all the leading FC-Series features with a 500-test, on-board memory and printing capability. Multiple user-friendly, programmable features allow users to set-up the unit to fit their application. The DataTrak option allows the FC-20 to operate as a computer peripheral.



FC Series Technical Specifications

Sensor High Quality Advanced Electrochemical Fuel Cell -Alcohol specific.

Pump Automatically actuated electronic pump system. No cocking required.

Units of Measure BAC Standard. Factory can set to any other common unit of measure.

Response Time Immediate on negatives, under 10 seconds on positives.

Recovery Time (ready for next test) Immediate on negatives, under 30 seconds on positives.

Accuracy DOT Approved at +/- .005BAC to +/- 5% above a .100BAC.

Operating Temperature Range 32-105 degrees F (0-40C)

Self Diagnostics Programmed self-check assures unit is operational upon power-up.

Size 2.6 x 5 x 1.25 inches (66 x 127 x 33 mm).

Weight .56 lbs. (255 grams)

Warranty One year limited warranty; parts and labor.

Detection Range .000 to .600 BAC

Power 4AA Alkaline Batteries. Up to 8000 tests per battery set. Internal Lithium battery powers real time clock (FC20).

Display 1.7 x .85 inch viewing area graphic LCD. Extended temperature range. Automatic backlight for nighttime use.

Mouthpieces Disposable.

Memory Permanent data storage survives on/off function or battery removal/failure. Last 500 test retention and associated test data



This kit includes the FC-20 breath alcohol tester, a carrying case, 10 disposable mouthpieces, a wrist strap, the calibration adapter, along with one pack of 4 AA batteries, a user instruction manual, and a one-year warranty.

To order, call (303) 670-2269. MAY NOT BE ORDERED ONLINE.

We want to be certain this product meets your needs, you are properly trained on the equipment, and an opportunity for you to receive a discount.
